Vibra Finish

Our Products

PLASTIC MEDIA

30007 plastic media a

Vibra Finishing Solutions

PLASTIC MEDIA

Ideal for soft metals like brass or aluminum and for stringy materials. Typically used on pre-paint or pre-plate finishing, polishing, and deburring. Provides a smooth and durable finish.

Category Tag
Request Quote
Download Information Sheet
Category Tag

Challenges we’ve solved in the past

Microscopic particle analysis for ISO 16232 compliance

Contamination Analysis and Technical Cleanliness Testing

Ultimate Guide to Contamination Analysis and Technical Cleanliness

Introduction to Contamination Analysis

What is Contamination Analysis?

Contamination refers to foreign particles and residues that form during the manufacturing process of components. These contaminants can stick to surfaces, reducing system performance or even causing major failures. At Vibra Finish, we specialize in surface finishing, ensuring your parts are cleaned and finished to remove all unwanted particles. We adhere to strict quality standards to meet specific contamination requirements, with ISO 16232 being the most recognized benchmark in this field.

Our process involves rinsing the parts with a special extraction fluid to dislodge contaminants. This fluid is then filtered, and the particles are analyzed under a high-magnification microscope, which automatically identifies, counts, and classifies them. This technique allows us to certify our washing process, ensuring your components meet the highest cleanliness standards.

Contamination analysis is critical in industries where precision and reliability are essential. In automotive manufacturing, it ensures that critical components like fuel injectors and braking systems perform flawlessly. The aerospace sector relies on cleanliness to maintain safety and efficiency in high-performance systems. Electronics require contamination-free surfaces to prevent short circuits and ensure the longevity of sensitive components. Vibra Finish provides solutions tailored to meet the rigorous standards of these industries.

The Importance of Technical Cleanliness

Contaminants can disrupt the performance of mechanical and electronic systems, and lead to accelerated wear, reduced lifespan and catastrophic failures. Technical cleanliness goes beyond a superficial inspection; it involves rigorous, repeatable analysis that scientifically assess and verify the absence of contamination.

In industries like automotive, aerospace, and healthcare, where precision, safety, and high production volumes are critical, contamination can lead to catastrophic consequences such as costly recalls, system failures, or life-threatening risks. Ensuring technical cleanliness through rigorous and reliable processes not only safeguards operations and users but also controls costs and maintains the dependability of millions of components produced annually.

Key Standards and Regulations for Cleanliness Testing

ISO 16232: The Automotive Cleanliness Benchmark

ISO 16232 establishes comprehensive methods for assessing particle contamination in automotive components, offering manufacturers a structured framework for compliance. It defines key metrics for particle size and distribution, specifies the materials and equipment required—such as extraction fluids—and outlines the necessary report details and personnel training for accurate implementation.

The procedure involves rinsing the cleaned surfaces with a jet of extraction fluid to dislodge any remaining contaminants. The resulting fluid is collected, filtered, and the filter is analyzed under a high-magnification microscope equipped with image analysis capabilities. Using specialized software, all particles are identified, measured, and counted. These findings are compiled into a detailed report. Approval is based on contamination criteria, which define the maximum allowable number of particles within specific size ranges.

VDA 19: Ensuring Cleanliness in Manufacturing

VDA 19 complements ISO 16232 by addressing cleanliness in broader manufacturing environments. While ISO 16232 focuses on automotive applications, VDA 19, developed by the German Association of the Automotive Industry (Verband der Automobilindustrie, VDA), extends its scope to include industries beyond road vehicles. Together, these standards establish the benchmark for industrial cleanliness.

VDA 19 is widely used in Europe and includes specific guidelines for maintaining cleanliness in assembly environments. With expertise in both ISO 16232 and VDA 19, Vibra can perform cleanliness testing to ensure your parts meet international standards, enabling you to confidently sell your products worldwide.

Additional Cleanliness Standards in Industrial Applications

Different industries, such as medical devices and precision instruments, have developed specific cleanliness guidelines to meet their unique requirements. At Vibra, we excel in adapting our processes to meet the precise needs of our customers, including renowned companies like Héroux Devtek, Pratt & Whitney, Rolls Royce, and General Motors.

As technology advances, the demand for higher accuracy and more detailed information continues to grow. At Vibra, we continuously evolve. Our engineers stay at the forefront of industry innovations, and we invest in state-of-the-art equipment to exceed your expectations. In fact, we already have the tools you may not yet know you need. For instance, our advanced Keyence microscope features next-generation imaging capabilities, high-performance software, and a polarizer to identify metallic particles with precision. This ensures we deliver unmatched cleanliness analysis for your most demanding applications. Our microscope can perform gravimetric, elemental and Light scattering method.

Understanding Contamination Particle Size and Its Role

Why Particle Size Matters in Cleanliness Analysis

Larger particles can block fluid passages reducing the lubrication effect, while microscopic particles may accelerate wear. Controlling particle size ensures efficiency and reliability.

Advanced Methods for Measuring Particle Size

We use cutting-edge digital microscopy to image and analyze particles with precision. Our state-of-the-art Keyence device offers ultra-high-definition imaging, advanced illumination, shadowing techniques, and powerful software. This allows us to achieve resolutions comparable to expensive SEM devices, but with greater efficiency and ease.

The software automatically detects and measures particles, ensuring consistent and repeatable results. Our experienced operators carefully review all images and can re-examine individual particles when necessary to maintain accuracy. This meticulous process ensures that every particle adheres to strict quality standards before validation. To meet stringent aerospace requirements, all results and applied filters are securely recorded for full traceability.

Methods and Techniques for Cleanliness Testing

Overview of Cleanliness Testing Procedures

At our facility, we use a variety of cleanliness testing techniques to ensure your components meet the highest quality standards.

  1. Optical Imaging Analysis: This is our primary method, where we use advanced microscopes to observe and measure particle sizes. The results provide detailed sizing distribution, which directly correlates to the cleanliness level of the part and the efficiency of the washing process. This technique can be complemented by elemental analysis, which helps identify the material composition of the particles, such as metallic or non-metallic substances.
  2. Gravimetric Analysis: In this method, we weigh the filters before and after filtering the extraction fluid. The difference in weight, caused by the residues remaining on the filter, indicates the level of contamination on the part.
Comparing Gravimetric and Microscopic Testing

While both methods are effective, they offer different advantages:

  • Gravimetric Analysis provides direct, measurable results but is purely quantitative.
  • Optical Imaging Analysis in microscope testing provides both qualitative and quantitative data. It identifies the type of contaminants (e.g., dust, fibers, metals) and measures their size distribution and quantity, offering a more comprehensive understanding of cleanliness.

Optical imaging requires more specialized equipment, such as calibrated microscopes, to meet stringent quality standards, while gravimetric is simpler and requires only a high-accuracy weighing system. Both methods are valuable, and we carefully select the most appropriate one based on your specific cleanliness requirements. We handle the entire process, including equipment management, so you can focus on your operations.

Cleanliness of Components and Systems

Achieving Cleanliness in Automotive Manufacturing

In automotive manufacturing, cleanliness in critical systems like fuel injection is essential. Even the smallest particle can contaminate fluids like gasoline or oil in brand new vehicles. This contamination can compromise engine performance, reduce longevity, and impact overall safety.

We use advanced inspection techniques to ensure all parts meet the required cleanliness standards. Our quality process adheres to the ISO 16232 standard, and we can adapt to your specific requirements. Our methods include microscopic analysis, gravimetric testing, and elemental identification.

Surface Cleanliness in Precision Industries

Maintaining surface cleanliness is a major challenge in industries like aerospace and electronics, where even trace amounts of contamination can compromise performance and safety. The slightest touch from a human hand or dust in the air can deposit particles on a surface. Even a poorly managed industrial washing process can introduce contamination, particularly when fluids are involved.

To address these challenges, our washing processes follow the strictest quality standards from military and aerospace, including AS9100D and NADCAP procedures. These standards guide not only the purity of our products but also our daily operations. Our employees are trained to ensure contamination-free surfaces, and our management conducts regular process improvement reviews. We minimize human contact, especially after washing, and maintain a Foreign Object Debris (FOD)-free environment. By adhering to these practices, we ensure that all components meet the highest cleanliness standards required in precision industries.

Innovations in Part Washing and Cleanliness Control

Role of Part Washing in Cleanliness Compliance

Effective part washing is critical in maintaining cleanliness compliance across industries. It plays a key role in removing contaminants, such as dust, oils, metal shavings, and other particles, which can compromise the performance and safety of critical systems. Without proper washing, even a single contaminant can pollute an entire fluid system, creating a cascading effect that leads to further failures and contamination of other connected systems. To prevent costly product recalls, it’s essential to implement thorough and effective part washing.

Vibra offers advanced part washing solutions that meet the highest standards of cleanliness and compliance. Suitable for a wide range of industries, Vibra’s solutions and certifications ensure thorough and efficient cleaning, eliminating the risk of system failures and product recalls.

Emerging Technologies for Contamination Control

The ISO 16232 standard, introduced in 2007, addressed the challenge of imaging micron-sized particles, which previously required costly electron microscopy and couldn’t verify cleanliness specifications effectively. By the early 2010s, advancements in particle analysis software enabled optical microscopes to perform ISO 16232 tests efficiently. More recently, techniques have advanced further allowing for determination of particle composition using laser-based methods. These provide critical insights for troubleshooting washing processes. These advancements are currently being integrated into new quality standards.

At Vibra, we use the Keyence VHX Series digital microscope to deliver precise ISO 16232 cleanliness testing. This advanced system combines high-resolution imaging with innovative illumination techniques, essential for detecting and analyzing particles to meet stringent cleanliness standards. With fully automated operation through embedded software, the VHX Series ensures seamless compliance with quality requirements, enhancing accuracy and efficiency in contamination analysis.

Challenges in Contamination Analysis

Common Contaminants in Manufacturing

Sources of contamination in industrial processes are diverse, but airborne dust particles settling on surfaces remain the primary issue in such settings. Additionally, materials like metal shavings, fibers, or blasting media often contribute significantly, especially when carried over from other manufacturing steps. Identifying and controlling these sources is essential to maintain clean production environments.

Preventing particle contamination during production requires strict control at every stage. Parts are unpacked, washed, and repackaged immediately to avoid unnecessary exposure. Our fully enclosed washer uses filtered air and washing fluids to eliminate the risk of contaminants entering the system. Once cleaned, parts are promptly protected to ensure they remain dust-free, with minimal handling to prevent exposure to external contaminants. Maintaining a clean environment and ensuring proper upkeep of washing fluid tanks are crucial to avoid foreign object debris (FOD). By reducing unnecessary operations and keeping each step of the process specialized and controlled, we minimize the risk of contamination, ensuring the highest production standards.

Tools and Technologies for Cleanliness Testing

Vibra’s Cleanliness Verification Tools

At Vibra, we leverage cutting-edge technology to deliver precise and reliable cleanliness verification. Our automated Keyence system stands at the forefront of innovation, embedding advanced software that handles every aspect of the cleanliness inspection process. From scanning and detecting particles to measuring their size and generating comprehensive reports, this system ensures accuracy and efficiency at every step.

The seamless integration of these features not only speeds up the verification process but also ensures compliance with stringent industry standards, giving you confidence in your products’ quality. What sets our system apart is its error-proof design. The automation minimizes human error by eliminating the guesswork, as the software performs most of the heavy lifting. Coupled with operator oversight, this creates a double-verification system that leaves no room for mistakes, guaranteeing unmatched reliability. By choosing Vibra, you’re not just investing in cleanliness verification; you’re partnering with a team that combines technological expertise with a commitment to excellence in compliance and quality assurance.

Innovations in Particle Identification

Scanning Electron Microscopy (SEM) now incorporates highly accurate Energy Dispersive Spectroscopy (EDS) systems, using X-ray diffraction to identify the elemental composition of even the smallest particles. Meanwhile, advancements in digital microscopy are narrowing the gap, with integrated laser modules that vaporize a tiny portion of a particle to generate plasma, enabling precise elemental identification.

Emerging tools for faster and more accurate analysis: Advancements in digital microscopy and software have revolutionized particle analysis, automating tasks like image stitching, focusing, and particle measurement on filters. These tools streamline operations by eliminating manual intervention during imaging and reporting, reducing human error while retaining expert validation where necessary.

Real-World Applications and Success Stories

Future of Cleanliness Testing and Standards

Trends in Cleanliness Testing Technologies

Cleanliness testing is evolving rapidly, driven by cutting-edge technologies and a focus on sustainability. AI and machine learning, embedded in digital microscopes for image post-treatment, are transforming particle analysis by enabling automated, highly accurate detection and classification of contaminants. These advanced tools reduce manual effort and provide real-time insights, helping industries meet strict cleanliness standards with unmatched efficiency.

Part washing has been a well-established process for years, but it has long relied solely on expertise, lacking consistent control and verification. Cleanliness testing, supported by the latest technological advancements and standardized methods, now offers a definitive and scientific way to ensure that parts are not only cleaned but meet precise reliability standards. By integrating these innovations, cleanliness testing bridges the gap between assumption and assurance, providing the confidence that their parts are truly ready for use.

Anticipated Updates to ISO and VDA Standards

The future of cleanliness testing standards, including ISO 16232 and VDA 19, highlights an increasing focus on advanced particle size analysis and chemical composition identification. Upcoming revisions are expected to demand the identification of the particle size, shape, and chemical properties. These capabilities are critical for pinpointing contamination sources and resolving issues within manufacturing processes. Cleanliness verification will evolve beyond traditional extraction and particle counting to include comprehensive material analysis that predicts and prevents potential failures.

At Vibra, we are uniquely positioned to help you navigate these changes. Our expertise in cleanliness testing, paired with state-of-the-art equipment, ensures we are always one step ahead of industry demands. We provide solutions that meet not only today’s standards but also those of tomorrow—often before you even realize the need. Trust Vibra to deliver the precision, reliability, and foresight required to keep your processes clean and your products at the forefront of innovation.

FAQs About Contamination Analysis and Cleanliness Testing
What is the Difference Between ISO 16232 and VDA 19?

-> VDA 19 expands on ISO 16232, addressing cleanliness in broader manufacturing environments beyond automotive applications. Widely used in Europe, it provides specific guidelines for assembly environments. Vibra’s expertise in both standards ensures your parts meet international cleanliness requirements, ensuring global market compliance.

How is Particle Size Measured in Cleanliness Testing?

-> We use a contaminant-free fluid to rinse the part, allowing it to extract any particles during the process. After rinsing, we filter the fluid to capture the particles. Finally, we analyze the collected particles on the filter using an advanced digital microscope.

Are You Able to Differentiate Metallic from Non-Metallic Particles During Cleanliness Analysis?

-> Yes. Our cutting-edge equipment uses advanced illumination technology to analyze particle surface reflections. The results are then measured and compared to a database to differentiate metallic from non-metallic materials.

Read More
Glass Bead Blasting

The Ultimate Guide to Glass Bead Blasting: Techniques, Benefits, and Best Practices

At Vibra Finish Ltd., we take pride in offering high-quality surface finishing solutions, and glass bead blasting is one of the most effective techniques for achieving smooth, clean, and visually appealing surfaces. This guide will provide an in-depth look at glass bead blasting, from its process to its many applications, benefits, and best practices.

What is Glass Bead Blasting?

Definition and Overview

Glass bead blasting is a non-abrasive surface finishing process where spherical glass beads are shot at high pressure onto a surface. The technique is commonly used to clean, polish, and prepare surfaces without damaging the material underneath. Unlike other abrasive methods, glass bead blasting leaves behind a smooth, uniform finish, making it ideal for industries where aesthetics and surface integrity are key.

Glass Bead Blasting

This method is widely used across industries such as automotive, aerospace, and general manufacturing, where it plays a crucial role in removing contaminants like rust, old paint, and debris, while ensuring the base material remains undamaged.

History and Evolution of Glass Bead Blasting

Glass bead blasting has come a long way since its introduction. Early methods of sandblasting were highly abrasive, which often led to material damage. However, the development of glass bead media offered a less aggressive yet equally effective solution. Over time, advancements in equipment, such as modern blasting cabinets and nozzles, have made glass blasting more precise and efficient, enabling it to be used in more delicate and high-precision industries like aerospace and medical manufacturing.

How Glass Bead Blasting Works

The Blasting Process in Detail

The glass bead blasting process involves several key steps:

  1. The surface to be treated is cleaned and prepped.
  2. Glass beads for blasting are loaded into a blasting machine.
  3. Compressed air propels the beads through a nozzle, directed at the target surface.
  4. The beads impact the surface, gently removing impurities without altering the material’s dimensions.

Key considerations during this process include choosing the right bead size, air pressure, and maintaining a consistent blasting distance to ensure an even finish.

Equipment and Tools for Glass Bead Blasting

Successful glass bead blasting requires specialized equipment, including:

  • Blasting cabinets to contain the media.
  • Nozzles of varying sizes for different applications.
  • Air compressors to generate the high pressure needed for blasting.

Maintaining equipment is essential for achieving the best results, as worn nozzles or inconsistent air pressure can affect the quality of the finish. Choosing the right tools and regularly servicing them ensures maximum efficiency and performance.

Benefits of Glass Bead Blasting

Surface Finish and Aesthetic Improvements

Glass bead blasting is highly valued for its ability to create smooth, satin, or matte finishes. This is particularly important for applications where appearance and texture matter, such as automotive parts or decorative metals. It not only improves the look of the material but also enhances its ability to bond with coatings, paints, or adhesives.

Non-Abrasive and Environmentally Friendly Solution

One of the primary advantages of glass bead blasting is that it’s a non-abrasive technique, making it safe for surfaces like aluminum and stainless steel, where preserving the material’s integrity is essential. Additionally, glass bead media is environmentally friendly. The beads are made from recycled glass and can be reused multiple times, making them a sustainable option compared to other blasting materials.

Common Applications of Glass Bead Blasting

Automotive Industry

In the automotive world, bead blasting is commonly used for restoring vintage car parts, cleaning engine components, and preparing metal surfaces for painting or powder coating. The process ensures a smooth, rust-free surface without damaging the metal, making it ideal for sensitive automotive restoration projects.

Aerospace Industry

In the aerospace industry, glass bead blasting is used to clean and prepare parts, ensuring that components are free from debris and ready for assembly or coating. This technique is valued for its precision and non-damaging nature, which is critical in aerospace applications where material integrity is paramount.

General Manufacturing and Maintenance

From metal fabrication to machinery maintenance, glass bead blasting is widely used to clean, deburr, and prepare surfaces for further processing. The technique is effective for removing contaminants like scale and rust while preserving the material’s surface properties.

Glass Bead Blasting vs. Other Blasting Methods

Glass Bead Blasting vs. Sandblasting

Compared to traditional sandblasting, glass bead blasting is less aggressive, offering a gentler option for delicate surfaces. Sandblasting can wear away material over time, making it unsuitable for projects where maintaining surface integrity is important. Glass blasting is often preferred for jobs requiring both cleaning and preservation.

Glass Bead Blasting Media: Choosing the Right Type

How to Choose the Best Glass Beads for Your Project

Selecting the right type of glass bead media depends on the application. Factors like bead size, hardness, and the desired finish all play a role in choosing the appropriate media. Larger beads provide a more aggressive finish, while smaller beads result in a smoother surface.

Pros and Cons of Glass Bead Blasting

Key Benefits

  • Non-abrasive: Preserves surface integrity.
  • Reusable: Cost-efficient and eco-friendly.

Drawbacks and Limitations

While glass beading is effective, it may not be the best option for every project. For example, it’s not as effective at removing thick coatings or heavily rusted materials as more abrasive media.

Safety Considerations in Glass Bead Blasting

Protective Gear and Safety Procedures

Operators should always use appropriate protective gear, such as gloves, masks, and eye protection, to prevent injury during the glass blasting process. Proper ventilation is also necessary to avoid inhalation of dust or particles.

Environmental and Health Impacts

Glass bead blasting is relatively safe and eco-friendly, but proper disposal of spent media is important to minimize environmental impacts. Using recycled beads and ensuring minimal dust emission are key steps toward an eco-conscious blasting operation.

Conclusion

Glass bead blasting offers a versatile, safe, and eco-friendly solution for surface preparation, cleaning, and polishing across a wide range of industries. Its ability to deliver smooth finishes without damaging materials makes it the go-to option for many precision applications.

Frequently Asked Questions

Can Glass Bead Blasting Be Used on All Metals?

Yes, glass bead blasting is suitable for most metals, including aluminum, steel, and stainless steel.

What’s the Difference Between Glass Bead Blasting and Soda Blasting?

Glass bead blasting is more versatile and effective for a wider range of applications, while soda blasting is gentler, often used for softer surfaces.

Can Glass Bead Blasting Remove Rust and Paint?

Yes, glass bead blasting effectively removes rust, paint and mill scale without damaging the base material. For more information on glass bead blasting services, contact Vibra Finish Ltd. today!

Read More
Thomas Skrlj_20230921_12629

Vibratory Peening

Kumar Balan explores the efficacy of vibratory peening, its financial viability and its potential market reach. His article will cover all these aspects courtesy of data provided by Vibra Finish.

In the winter 2018 issue of The Shot Peener, we discussed two non-conventional peening techniques; one of which was Vibratory Peening. In addition to the superior surface finish, we learnt that the layer of compression was deeper with vibratory peening when compared to conventional shot peening. The process itself was significantly different from conventional peening in terms of media life, dust generation and utility costs. We concluded that this technique of generating residual compressive stress was worth further exploration. The results are discussed here.

Vibra Finish, a company based in Mississauga, Ontario (Canada) has conducted multiple studies to validate the established facts and clearly define limitations of this peening process. They have attempted to identify components, both industrial and domestic, that demand and could benefit from a combination of fatigue resistance and superior surface finish, both in a single step process.

When reviewing a new process, especially one that simulates an established technique albeit with marked improvements, skepticism is common. Such doubts include the technical efficacy of the process, financial viability and its potential market reach. Our discussion will cover all these aspects courtesy of data provided by Vibra Finish. Given that Vibra Finish operates conventional shot peening machines as well, our discussion is enriched by the comparison of both techniques under identical process variables.

Background

Vibratory finishing is a primary process in its own right and sometimes it is a supplementary process used to polish a shot-peened surface. As a secondary operation, it can eliminate surface roughness created during peening. Surface roughness, greater than a certain application dependent value, can have a detrimental effect on the fatigue life of the component. As we know, most specifications limit material removal in post-peening finishing to 10% of the ‘A” intensity value. Vibratory finishing could be controlled to stay well within this tolerance. Vibratory finishing is also used for deburring, burnishing, descaling and is ideal for finishing parts prior to painting, plating, heat treating, anodizing or simply to achieve an excellent final finish.

Vibratory finishing is categorized as a “mass-finishing” process, and when designed properly, will result in a batch of parts that is treated with uniformity and consistency. The process is not reliant on operator skill unlike certain other techniques such as buffing, filing, belting, etc. Instead, a batch of parts are loaded in bulk into a tub or continuously fed to a vibratory machine for inline operation. The tub is filled with finishing media and suitable compound(s) that when combined act as thousands of small filing surfaces scrubbing the parts. The compound assists the cleaning/finishing action of the media (usually made from ceramic). The choice of compound will depend on the material to be treated, the desired surface finish, and the individual application and process requirements. Additives in the compound could serve other purposes such as alkaline cleaning, acidic burnishing, washing and rust inhibition.

Just like any other process, vibratory finishing has controllable variables that alter the finish quality. Two of the main factors include the amplitude and frequency of vibration. Given the advantages of this process, it is a natural progression that vibratory finishing be extended in its application range to provide a peened and finished product in a single step.

Past Research

In 2016-17, Dr. Hongyan Miao and Prof. Martin Levesque from Polytechnique Montreal studied the fatigue life improvements of a certain alloy type using conventional peening and shot peening. The results from this test were encouraging enough to carry out further testing. The details of their testing are as follows:

  • Conventional shot peening was carried out in an Automated air type machine with a V2″ diameter nozzle propelling Z425 ceramic bead on the component. The target intensity was 8A, achieved at an air pressure of 20 PSI and media flow of 10 lb./minute. The part was fixtured on a rotary table.
  • Vibratory peening (this term is used to signify the sole purpose of this operation-peening) was performed in a batch-type tub filled with AISI Type 1018 Carbon Steel balls with diameters 1/8″, 3/16″ and Vi”, adding up to almost a ton in weight. The target intensity remained unchanged from 8A as in the conventional peening machine.
  • It is interesting to note the mix of media sizes in this process as compared to conventional shot peening where the reliance is on consistent media size, to the extent of using classifier screens to maintain the same in the machine. Due to proprietary nature of this process, further elaborations on the use of multiple media sizes is not readily available. A reasonable explanation would be to consider the mechanism of media movement in a batch-type tub, and the interaction of one size with another much like on a pool table. This is compared to conventional peening where a steady stream of media impacts the target.
  • Both media types (ceramic and carbon steel balls) were of comparable hardness in the range of 60 HRC.
  • In contrast to conventional shot peening where the part spinning on the table was targeted by the abrasive, the part in the vibratory tub was positioned 10″ below the ball bed surface with constant contact of the carbon steel balls.

The team plotted saturation curves using data sets obtained from both peening techniques and, with their distinct process parameters, they arrived at an intensity of 8.3A and 8.6A with shot peening and vibratory peening respectively. Residual stress measurements carried out on the test parts using X-ray diffraction displayed some interesting results. Shot peening produced a larger surface and maximum compressive residual stress (-212 MPa and -297 MPA respectively), as compared to -148 MPa and -225 MPa produced with vibratory peening. However, the difference was in the depth of compression. Vibratory peening produced -50 MPa at 520 micron below the surface whereas with shot peening, the same magnitude of residual stress, -50 MPa, went only 340 micron deep into the surface. In practical terms, if we are able to alter the process parameters in vibratory peening so that it generates the same magnitude of compressive stress as shot peening, we can expect this stress to stretch over a greater depth than with shot peening.

The surface roughness results were as expected. The study compared the surface roughness of the sample part as machined, shot peened and after vibratory peening. Roughness was tested on three samples, on three individual locations and the trend was the same in all cases. One such set of results is documented below for brevity.

Promising Performance 02

Fatigue tests performed as part of this study generated similar average fatigue lives for both processes. However, they did find that the values from shot peening had significantly less standard deviation (minimal variation). The study concluded that rather than comparing similar Almen intensity values, future studies should compare the fatigue life measures for similar residual stress profiles, at different levels of roughness. Ultimately, the measure of all such processes is based on the extent to which fatigue life has been impacted, preferably in the positive direction.

Commercial Components and Vibratory Peening

Encouraged by the results of the previous tests, Vibra Finish continued with comparative tests on more conventional components – a turbine blade and an automotive transmission gear. The tests were to study the following:

  • Compare the effects of shot peening and vibratory peening on (a) open and (b) relatively closed geometries in order to learn the limitations presented by certain part types to this process.
  • Surface roughness
  • Residual stress and nature of curves (relieving of compressive stress as measured into the depth of the part)

The conventional shot peening process was carried out in an automated airblast machine under the following process parameters: Target intensity: 10 to 12A and 100% coverage. This was achieved using SI 10 regular hardness steel shot propelled at 30 PSI by a Vi” diameter nozzle at a stand-off distance of 8″ for a time cycle of 30 seconds.

Vibratory peening was carried out using single size, 3 mm diameter steel balls, in a batch type tub for a total cycle time of 10 minutes. Two sets of data, one for surface roughness and the other for residual stress (using X-Ray Diffraction) were analyzed.

Surface Roughness Data:

Promising Performance 03

The surface finish results show an interesting trend in a relatively closed geometry component (gear) when compared with the blade with wide, open surfaces. The root section of the gear, which is the area of maximum stress concentration, is the most important region for measurement. In this region, the shot peened component exhibited a much rougher surface finish when compared to an identical vibra-peened component. All other regions of the gear such as the drive face, coast face and tip showed comparable surface roughness values in both processes. Geometry of the gear tooth, media access and media size could all be factors that might have contributed to the final roughness value in vibratory peening.

Though S110 was ideally suited to peen the smallest radius of the gear tooth without causing coverage issues, the surface roughness ended up much higher than with vibratory peening. However, we have to consider the fact that in order to achieve the same intensity (8 to 12A), the S-110 would’ve had to penetrate deeper than the 3 mm balls in vibratory peening, resulting in a rough surface profile.

A study of the residual stress profile provided further insight into the characteristics of both processes to induce compression in the parts.

Promising Performance 04
Gear

The residual stress curve for this component is different from the classic “J” hook curve that was expected before the results were obtained. Also, this is a carburized component that may not necessarily show high values of residual stress when shot peened with SI 10 size media to a relatively lower intensity range (8 to 12 A). Though the residual stress at the surface of the shot peened sample is greater than that achieved with vibratory peening, the dissipation (or loss) of residual stress towards the depth of the material is much more controlled with the vibratory peened sample. Vibratory peening did record a seemingly anomalous reading when measured at 0.0008″ depth, registering a steep 33% drop from -79 ksi to -53 ksi before continuing with a controlled and gradual decline at deeper levels into the sample.

An obvious question that remains to be evaluated is whether the surface finish (roughness) was the cause of this steep drop in residual stress in the shot peened sample, especially considering the smoother surface after vibratory peening. The gear being carburized might have also led to the relatively lower magnitude of residual stress using both types of peening techniques.

Blade

A blade from a turbine wheel was chosen for its open geometry. As it turned out, the resultant residual stress followed the all-familiar J-hook pattern. Surprisingly, the compressive stress generated at the surface was greater with vibratory peening when compared to the shot peened sample. Once again, the open geometry of the part and material properties (softer than the gear) likely caused this result. An interesting observation is to be made at 0.0021″ depth where both processes register the maximum compression. Assuming the shot-peened part had developed a rough profile after peening, if one were to polish it by 10% of the ‘A” intensity value, i.e., 0.0011″, we will end up with a higher residual stress value (about -140 ksi) at the surface of the shot peened part. At this depth, the vibra-peened part will have a residual stress of-113 ksi without the need to be polished.

Promising Performance 05
  • The drop in residual stress when going deeper into the component was drastic with the shot-peened part and followed a gradual decline with the vibra-peened component. This is a positive attribute of the latter process.
  • In both cases, it appears that the geometry of the part played a big role in generating increased magnitude of residual stress.

Conclusions and Future Steps

Vibratory peening certainly shows a lot of promise in terms of combining the two essential features in surface finish— smooth profile and compressive stress—in a single step. Moreover, in both examples, it has shown a gradual and smooth dissipation of this stress as one travels deeper into the material, demonstrating the controllability of the process. The next steps are to study the operating cost of both processes to assess the financial viability of the process. Vibratory peening does not possess the same consumable pattern that we are all familiar in conventional shot peening. This is also true in terms of capital costs involved in procuring a conventional shot peening machine.

Vibratory peening has yet not been governed by a specification. This might be the next step to increase the adoption of this process in known sectors. Meanwhile, a whole range of consumer parts could greatly benefit from this combined process.

About Vibra Finish

Vibra Finish, located in Mississauga, Ontario, Canada, offers a full range of vibratory finishing services and equipment. Their services include deburring, burnishing, descaling, vibrapeening, polishing, rust removal, cleaning, drying, corrosion protection, and peening services. Visit: vibra.com for more information.

Source: The Shot Peener

Read More
30007_plastic-media-a

Choosing Tumbling Media

A common deburring machine used for mass-finishing parts is a vibratory deburring machine, or vibratory tumbler, which utilizes abrasive tumbling media to deburr, clean, or polish unfinished or dirty parts or objects. At Vibra Finish, the abrasive media and unfinished or dirty parts are put inside a large drum. The drum vibrates, driving down the contents in a circular motion, mixing everything together. The unfinished or dirty parts are subsequently deburred, cleaned, or polished by friction with the abrasive material.

The kind of deburring, cleaning, or polishing desired and the part characteristics will determine the type, size, and shape of the abrasive media used. Some common types of tumbling media are abrasive steel, ceramic, organic materials, and plastic. These materials can be purchased in a variety of shapes such as cylinders, cones, stars, pyramids, wedges, spheres,  ovals, and other forms, depending on the function needed. Openings in the parts will determine the size and shape of the media used. To prevent media lodging in the part, it should be a minimum of 70 per cent of the size of the hole or slot. This avoids two pieces getting stuck side by side in the piece.

Here are some common uses for abrasive media in the Vibra Finish process:

  • Steel Media – Use for heavy deburring, or shining, polishing, and burnishing metal, plastic, or ceramic parts. Since plastics have a high abrasion resistance, resulting in a matte finish after deburring, a second, polishing step is often required.
  • Ceramic Media – Use for light and heavy deburring and when fast deburring is needed. Good for hard, heavy metals (such as steel or stainless) and to remove rust on parts. Use for general-purpose polishing. Plastic, steel, stainless, and aluminum parts are often polished using ceramic media. Use ball shapes to polish aluminum to avoid nicks.
  • Plastic Media – Use for general metal deburring, precision deburring, polishing, and burnishing. Use on softer metals such as aluminum or brass and on threaded parts.
  • Organic Media (Walnut Shells, Corn Cob) – Use walnut shells for medium-to-light deburring. For light finishing and polishing, use walnut shells and corn cob meal. To clean and dry wet or dirty parts, use organic media. Corn cob is particularly desirable in finishing some metal parts because of its ability to absorb surface oils on the parts. Utilizing organic media is advantageous because they are natural, safer for the environment, biodegradable, durable, and reusable.
  • Wet tumbling compounds – Used by mixing with solid media to deburr, finish and polish parts, their function is to clean, enhance deburring, and for corrosion and rust protection.

Abrasive media for deburring equipment wears down slowly, but will vary on how aggressive the media is. Also, the smaller the media, the better the finish, but the longer it will take. The larger the media, the faster it will deburr. Having the correct media and the deburring machine full of parts is the key to successful finishing.

To learn more, please contact Vibra Finish.

Read More
VF4-INFO-edit

Vibra-Glo Compounds

Vibra Finish has mastered every aspect of the metal-finishing process – including cleaning, polishing, smoothing, and deburring – making it Ontario’s go-to source for industrial finishing. But the company’s services also extend to selling a variety of media, compounds, and other materials to help customers with their private finishing applications. The Vibra Finish inventory includes 13 types of Vibra-Glo compounds for various applications, from burnishing to rust removal.

Cleaning, Smoothing, and Polishing Surfaces

Vibra-Glo compounds play an important role in the finishing process. Users throw these finishing compounds together into a system with water and media, and the machine’s sliding or tumbling action causes the compounds to clean, polish, and smooth the surfaces of the metal parts.

Wet compounds are available from Vibra Finish. They typically come in a paste form or are used with water in wet finishing processes. In addition, these compounds are formulated with properties that are tailored specifically for use in either tumbling barrels or vibratory systems.

Vibratory compounds are designed for finishing in vibratory machines, which are usually relied upon for thorough cleaning and deburring of delicate parts or parts with bores or recess that are difficult to reach. These compounds are also well suited to large surfaces. Adding a vibratory compound, along with selected media, to a vibratory machine that contains parts for mass finishing causes the machine’s rubbing action to have an abrasive effect on the parts, helping to clean them more effectively. Another benefit of compounds is their suspension properties, which stop the debris that arises from depositing back on the parts, thereby keeping the abrasive action constant.

The lineup of Vibra-Glo compounds available includes five types of rust inhibitors, two alkaline cleaners, two all-purpose cleaners, two mild acidic burnishers, and one type each of powdered concentrate and washing compound. The range that Vibra Finish carries is ample evidence of the many ways compounds benefit the finishing process.

Trust Vibra Finish compounds for a better finishing job every time.

To learn more, please contact Vibra Finish.

Read More
TSK_20230921_15175

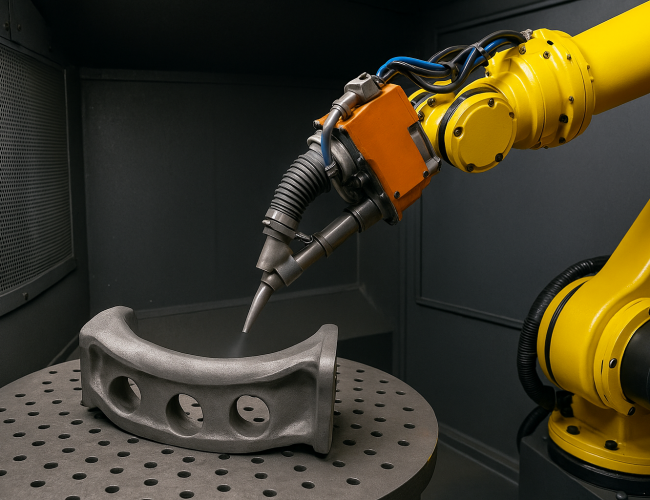

Sandblasting Advantage

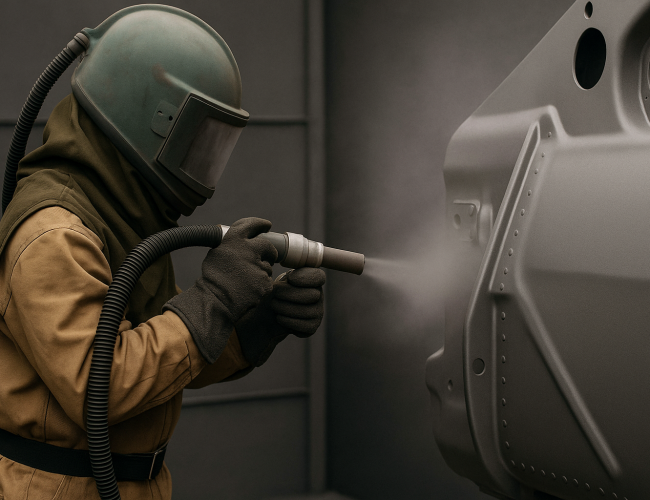

For close to half a century, Vibra Finish has offered industrial metal-finishing services above and beyond customer expectations. The company’s many skills including burnishing, surface engineering, deburring, rust removal, and vibratory finishing. Another key example is metal blasting – a process for cleaning or finishing surfaces with a special tool that shoots out pressurized abrasive material at high speed. This method offers three major advantages: effectiveness, economy, and versatility.

Cleaning Dirt and Debris Thoroughly

Blasting is renowned for its effectiveness; it can clean dirt and debris thoroughly, while also grinding rust, paint, and corrosion from metal surfaces to result in the best possible finish.

Economy is another key benefit of metal sandblasting. The Vibra Finish team conducts blasting before finishing in order to replace sanding, wire brushing, and pickling. Since this method cleans the surface mechanically, often no other cleaning is typically necessary, which saves plenty of time. Blasting can be up to 75 per cent faster than hand cleaning, and the abrasives for blasting are relatively inexpensive and reusable. In addition, blasting offers high productivity per hour per dollar of equipment.

Finally, metal blasting is very versatile. It can accomplish many different kinds of finishes, and the final effect depends on the hardness of the abrasive, its particle size, the speed of the abrasive stream, the angle of the abrasive gun and its distance away, the method of application, the workflow, and other factors. The user can choose from a broad variety of abrasives such as aluminum oxide, plastic abrasives, silicon carbide, corn-cob grit, and glass beads to achieve different outcomes; for example, abrasive grits leave a dull satin finish, while glass beads texturize, descale, remove light burrs and die-cast flash to create a smooth, bright satin finish.

To learn more about sandblasting options and advantages, contact Vibra Finish.

Read More
Vibra Finish
Contact Us
Facebook Linkedin Youtube Instagram

© 2025 Vibra Finish | Website Developed by GrayCyan.com

en_CAEnglish
fr_CAFrench en_CAEnglish
Scroll to Top

Request A Quote
